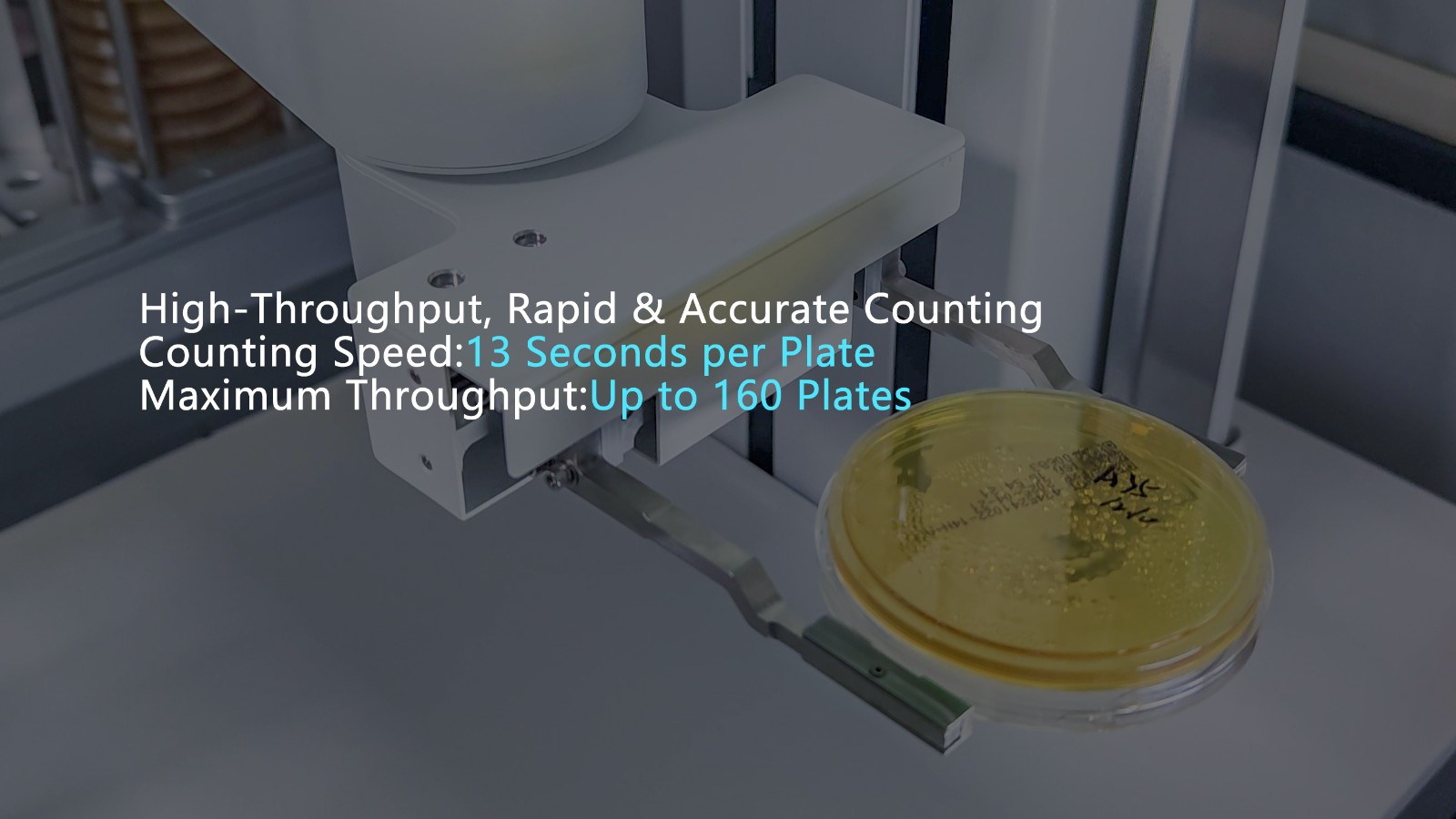

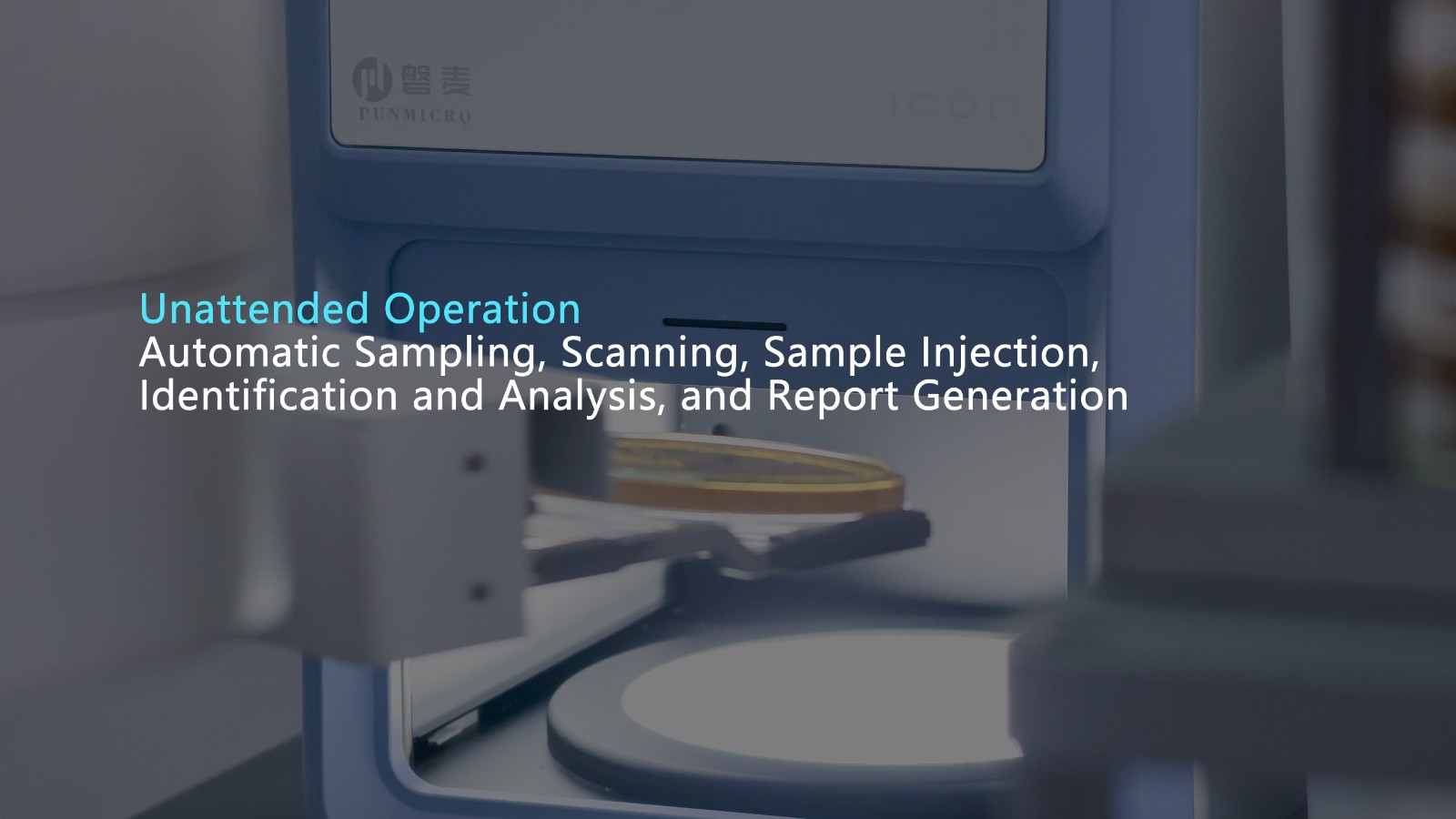

ICONSTATION uses high-precision robotic arms to achieve unmanned automation throughout the entire process, including board replacement, sample code recognition, colony counting, and data management. The multi specification and multi-mode sample shelf form can easily meet various sample flux requirements.

Embedded software system

The core module runs safely and stably, and the analysis data is tamper proof; The computing core is built into the counter, with dual channel backup data (enterprise version) to avoid damage caused by abnormal factors such as computer viruses

Counting type

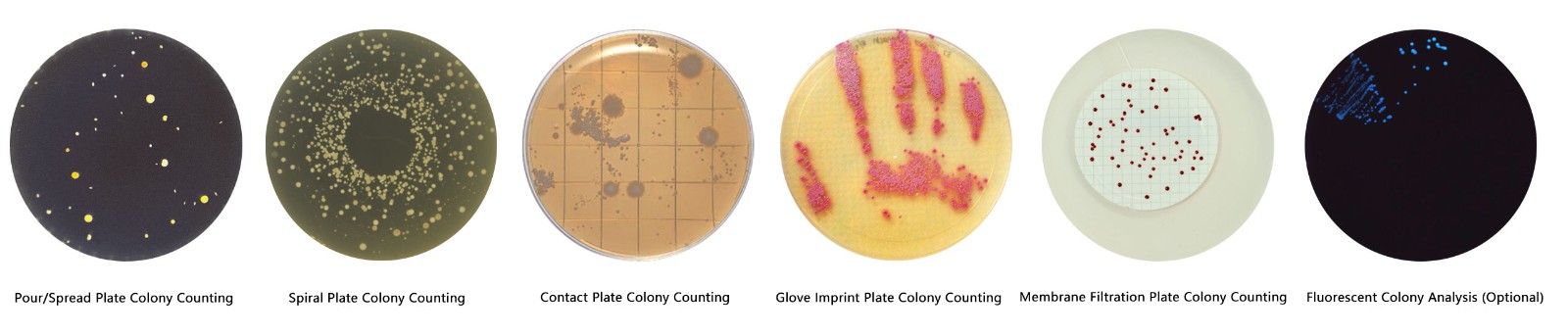

Support spiral coating method, pouring method, paper sheet method, membrane filtration method, contact disc counting, glove embossing counting, etc

Colony recognition method

A graphical simulation algorithm based on Sanitized colony morphology library comparison ensures colony counting accuracy>98%

Sample Specifications

55mm/60mm/90mm/120mm/150mm standard circular culture dish, automatically recognized by the system

light source

Built in top and bottom light sources, no need for mechanical switch control, automatic dimming, 254nm UV lamp for sample chamber disinfection (optional), 366nm UV lamp for fluorescence based colony counting (optional)

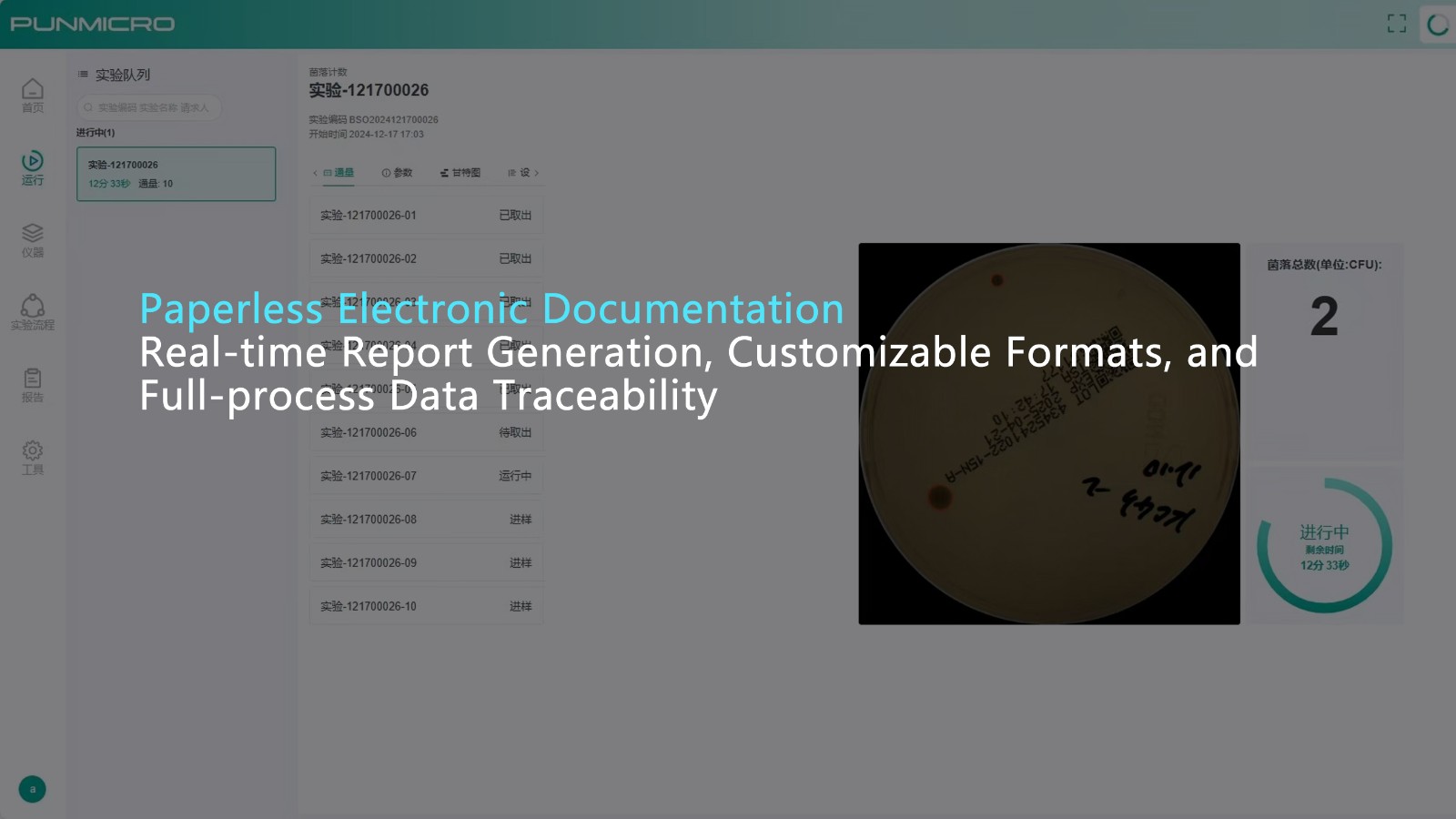

Data export

Support batch export of analysis results in PDF and Excel, without the need for manual tabulation, and the export format can be perfectly customized

data transmission

Gigabit Ethernet or WIFI wireless data transmission
